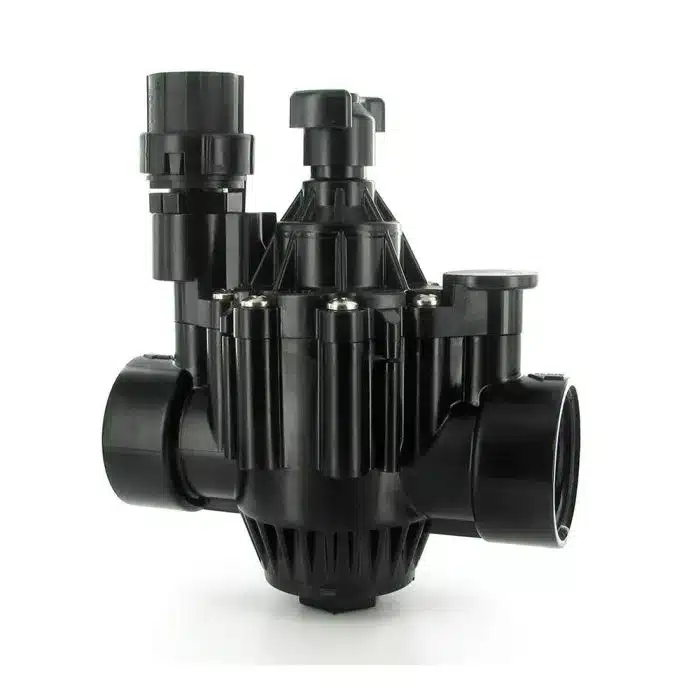

1.5″ RAIN BIRD ANGLE VALVE
Built for high-end residential and light commercial applications, Rain Bird PGA series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure.
FEATURES:
- Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
- Robust construction and electrical design for quiet performance you can count on
- Filtered pilot flow to resist debris and clogging
- Slow closing to prevent water hammer and subsequent system damage
- Normally closed, forward flow design accepts latching solenoid for use with Rain Bird battery-operated controllers
PRODUCT DETAILS:
- Pressure: 15 to 150 psi (1.0 to 10.4 bar)
- Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
- Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
- Temperature: Up to 110°F (43°C)
- 24 VAC 50/60 Hz (cycles per second) solenoid
- Inrush current: 0.41A (9.9VA)
- Holding current: 0.14A (3.43VA)
- Solenoid Coil resistance: 30-39 Ohms, nominal
- 150-PGA: 8″ x 6 3/4″ x 3 1/2″ (20.3 cm) x (17.2 cm) x (8.9 cm)
